Switchgear Parts
High-Voltage Metal-Clad & Metal-Enclosed Switchboards
High-Voltage Metal-Clad & Metal-Enclosed Switchboards
Switchboards manufacturing business has been specialty since ISO 9001 certified Quality Control System in 1997. The switchgear is for Industrial Plant, Subway, Railroad, Large Building, Apartment, Department Store and many other project. Drawout type designs with precise truck interlock that gives high reliability and safety are available for rated voltages from 3.3 to 36KV, rated short circuit currents from 8 to 50KA and rated operating currents for the feeders and busbars up to 2,000A.
![](https://www.ssangyonge.co.kr/wp-content/uploads/2019/09/2.고압배전반-1024x930.png)
![자산 23@3x-8 자산 23@3x-8](https://www.ssangyonge.co.kr/wp-content/uploads/2019/09/자산-23@3x-8.png)
Easy maintenance
![](https://www.ssangyonge.co.kr/wp-content/uploads/2019/09/구조적안정성@3x.png)
Structural stability
![](https://www.ssangyonge.co.kr/wp-content/uploads/2019/09/자산-32@3x-8.png)
Compact design
![](https://www.ssangyonge.co.kr/wp-content/uploads/2019/09/스크린샷-2019-08-29-오전-9.54.02-1024x423.png)
![](https://www.ssangyonge.co.kr/wp-content/uploads/2019/09/img_sub_03-03-1024x173.png)
Constantly Challenging, Creating a New Future
We are creating a new future by constantly taking on challenges.

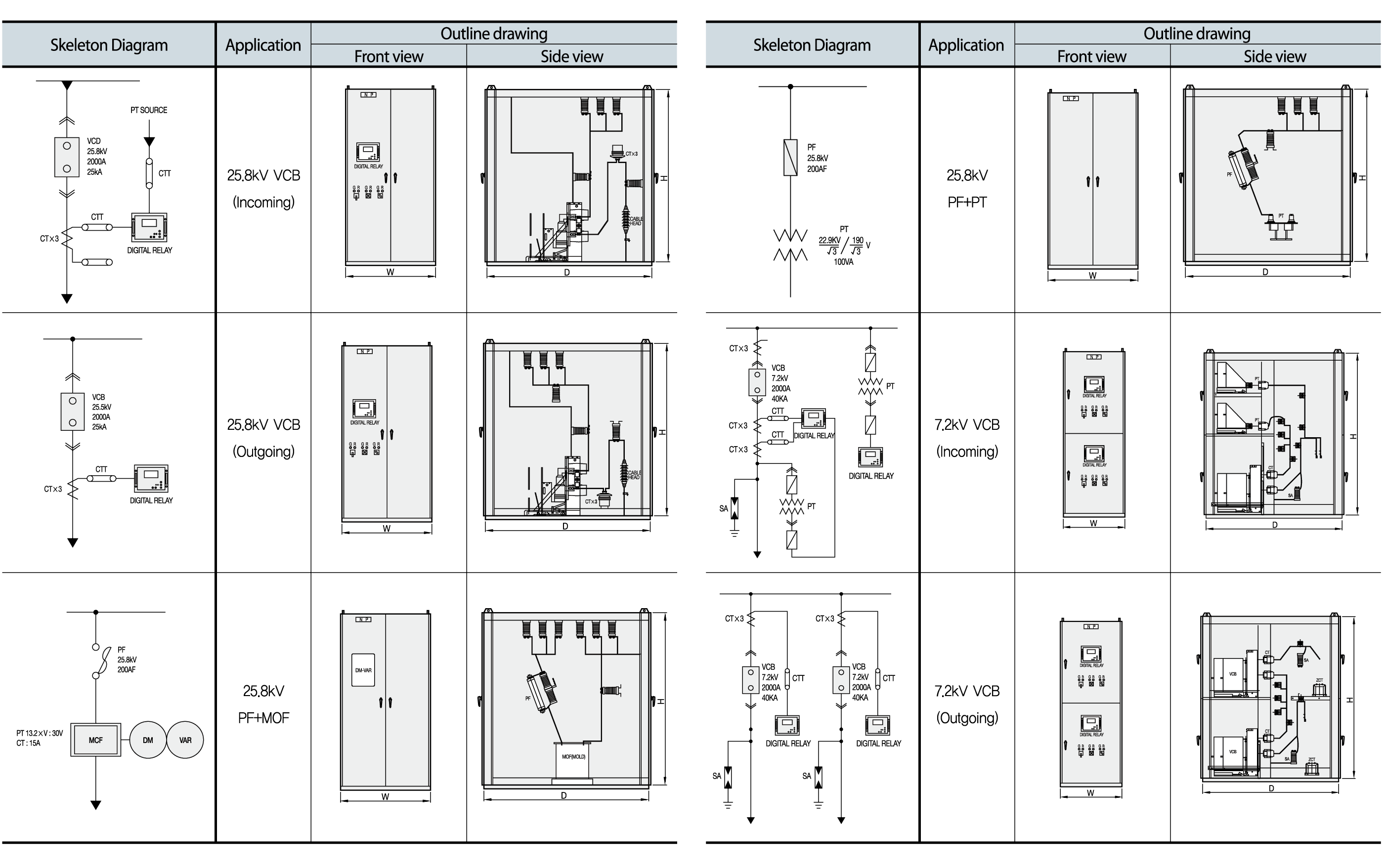

Dimension
SPECIFICATION
![](https://www.ssangyonge.co.kr/wp-content/uploads/2019/09/2.고압배전반_도면-1024x643.png)
Dimension
specification

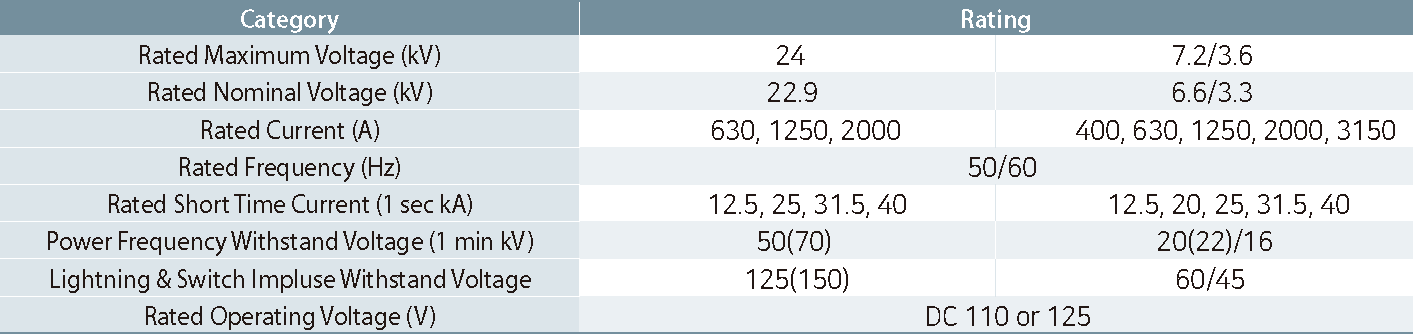

Product specification
![](https://www.ssangyonge.co.kr/wp-content/uploads/2019/09/2.스위치기어_표1-1024x243.png)
